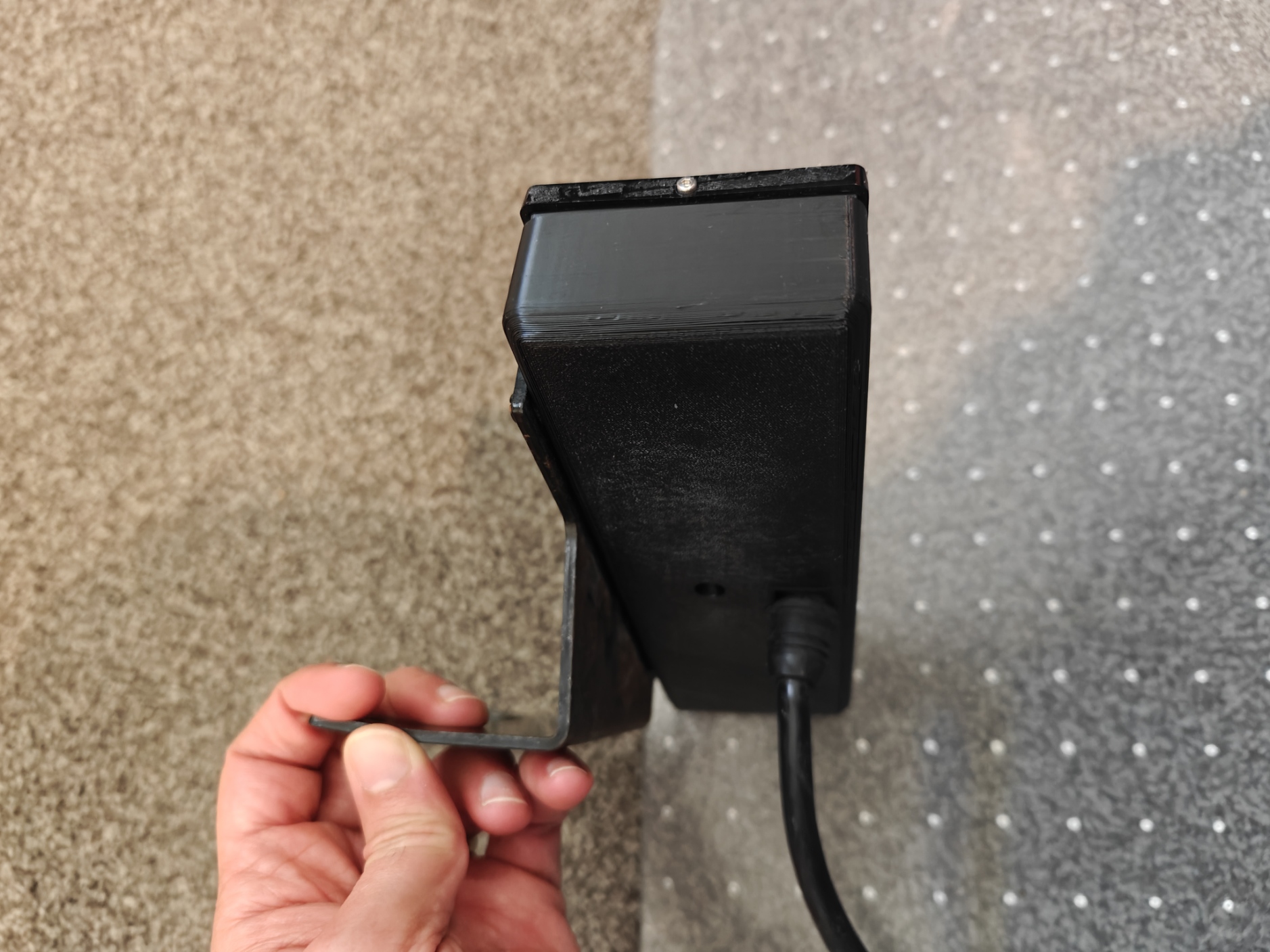

Toyota LS2-AD320-202 control panel housing repaired from a severely broken sample.

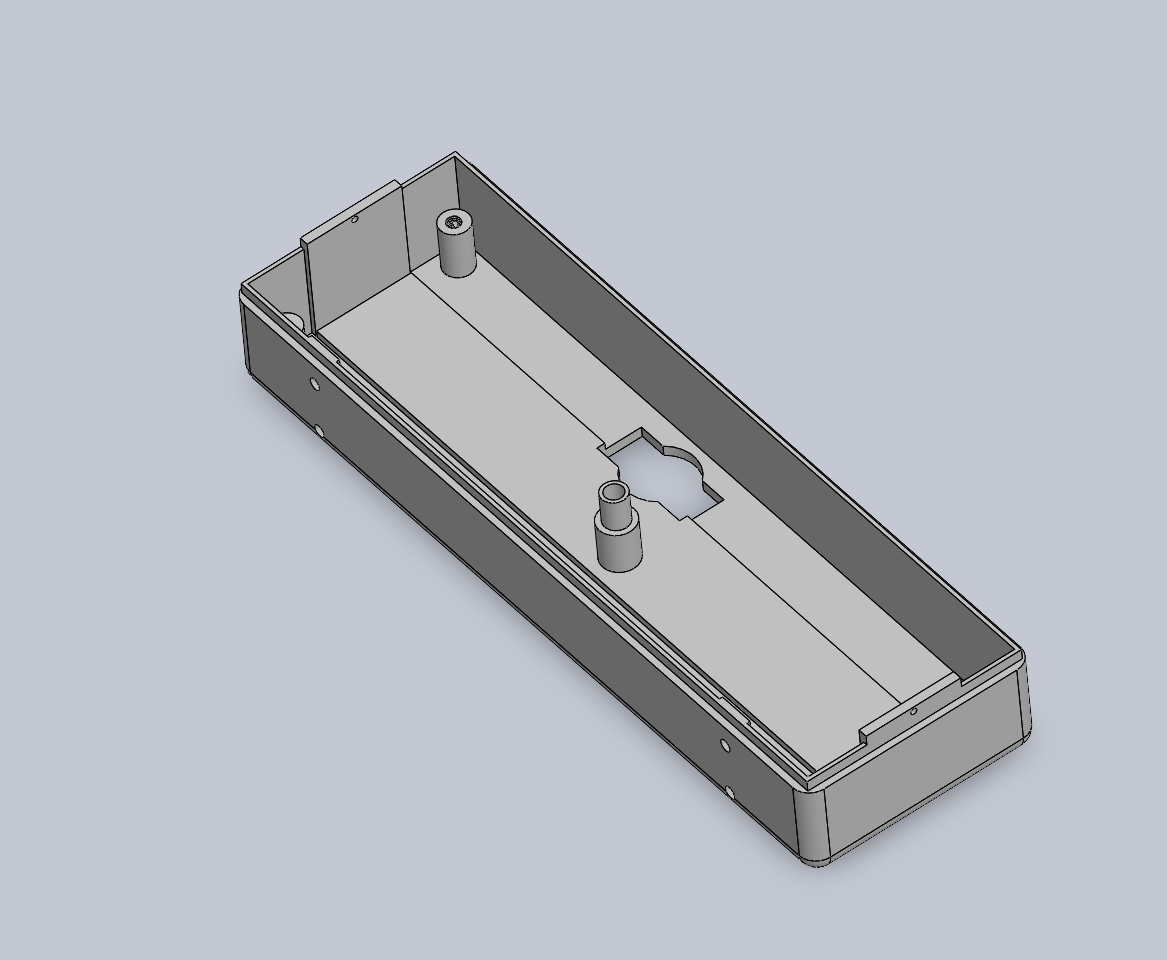

A client dropped off a badly broken Toyota LS2-AD320-202 sewing machine control panel housing. No existing printable model could be found, so Quality3Ds reverse engineered the enclosure and refined it through three quick CAD and print iterations.
The problem

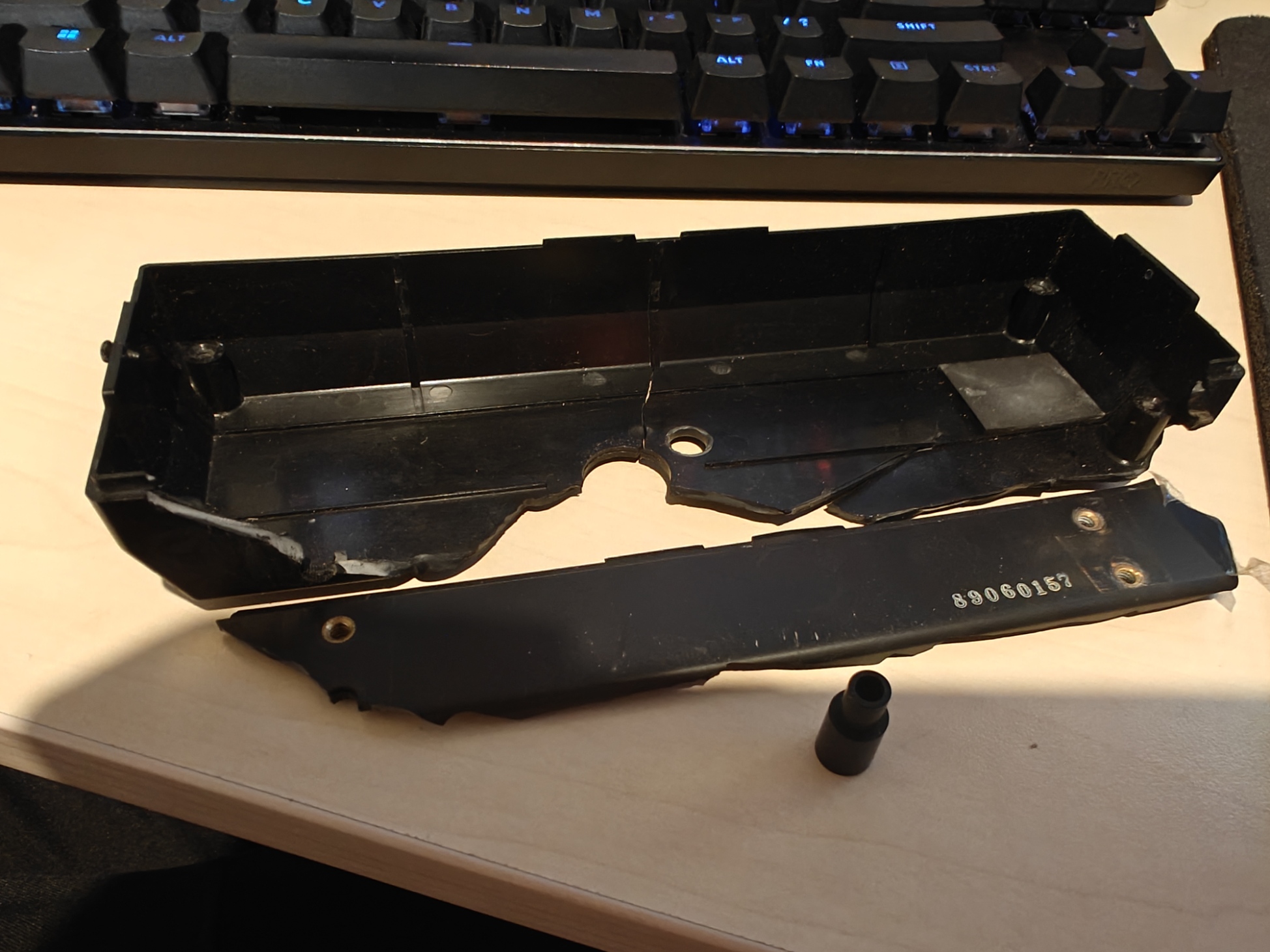

The original plastic housing was cracked and broken around the control panel, internal standoffs, cable entry, and mounting areas.

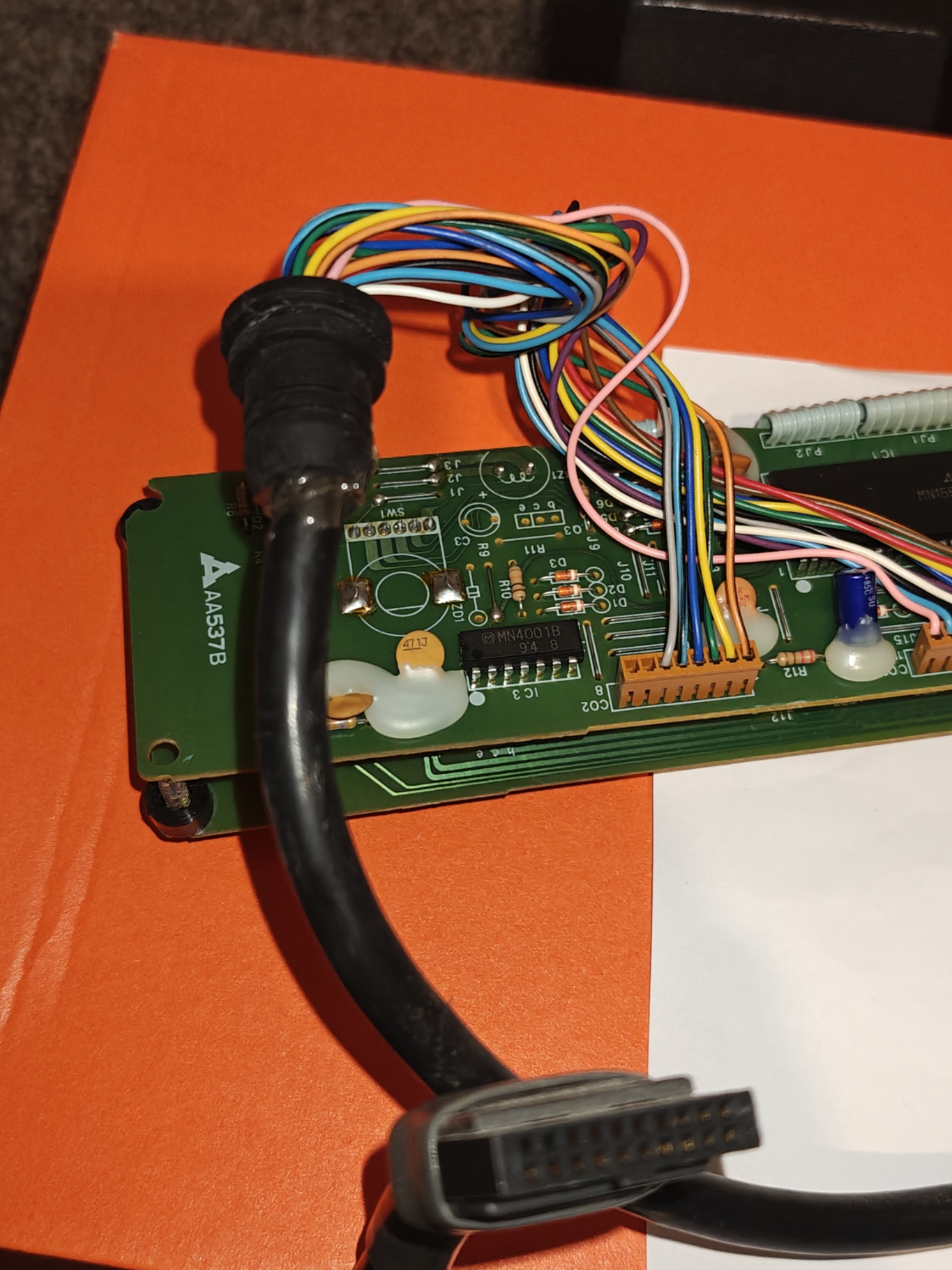

The electronics and front panel had to fit back into a usable enclosure, so the repair needed more than a cosmetic shell. The geometry had to line up with the PCB, cable relief, front controls, screw positions, and the metal mounting bracket.
Project scope

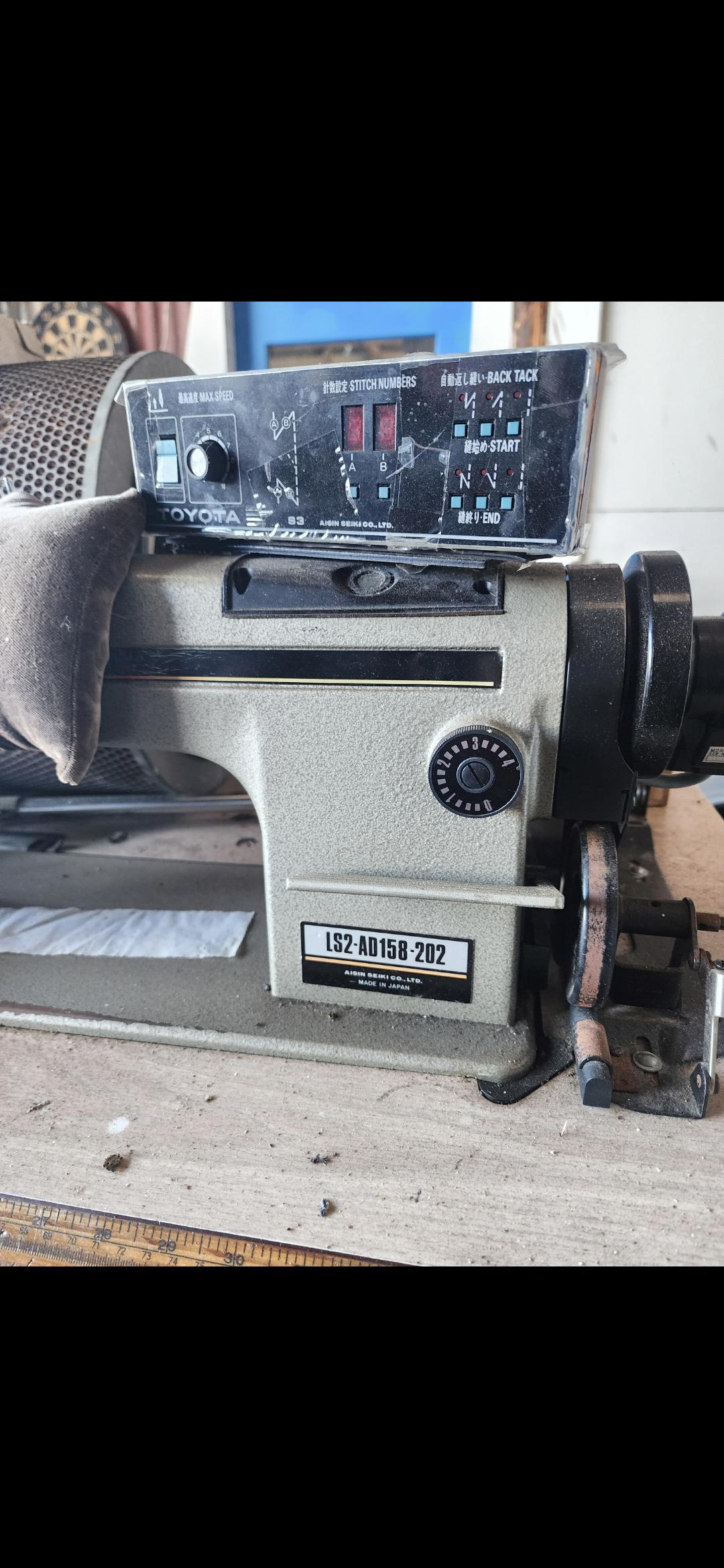

Reverse engineering, CAD modelling, three fast fit iterations, FDM printing, and final assembly support for a client-supplied sewing machine control panel.

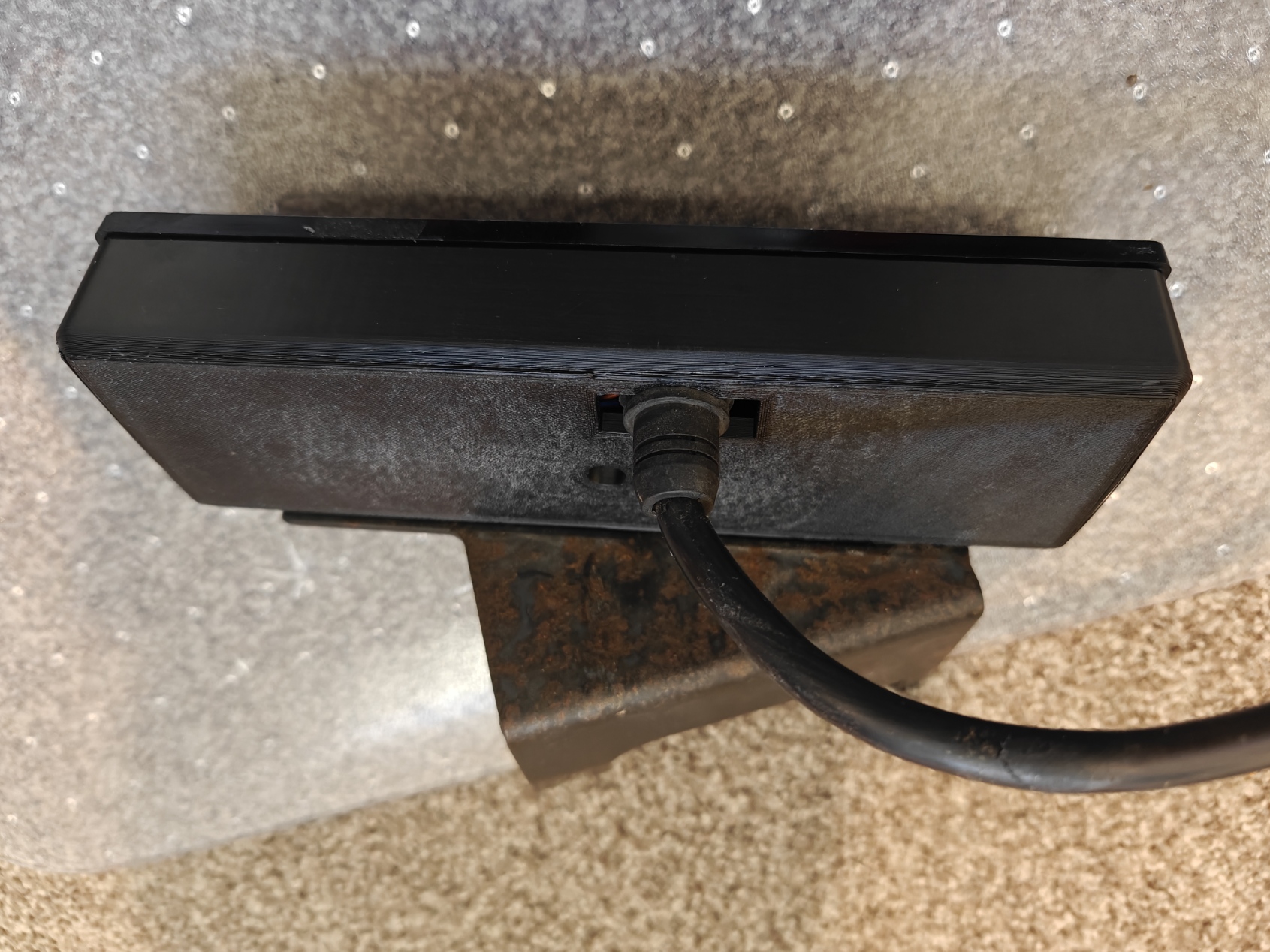

From broken housing to working fit
The project combined physical inspection, CAD rebuild, and quick printed iterations to recover a practical control panel enclosure.
Why this kind of repair works
Useful when parts are unavailable
If the model cannot be found online and replacements are unavailable, the physical part can still guide a rebuild.
Fast fit iterations

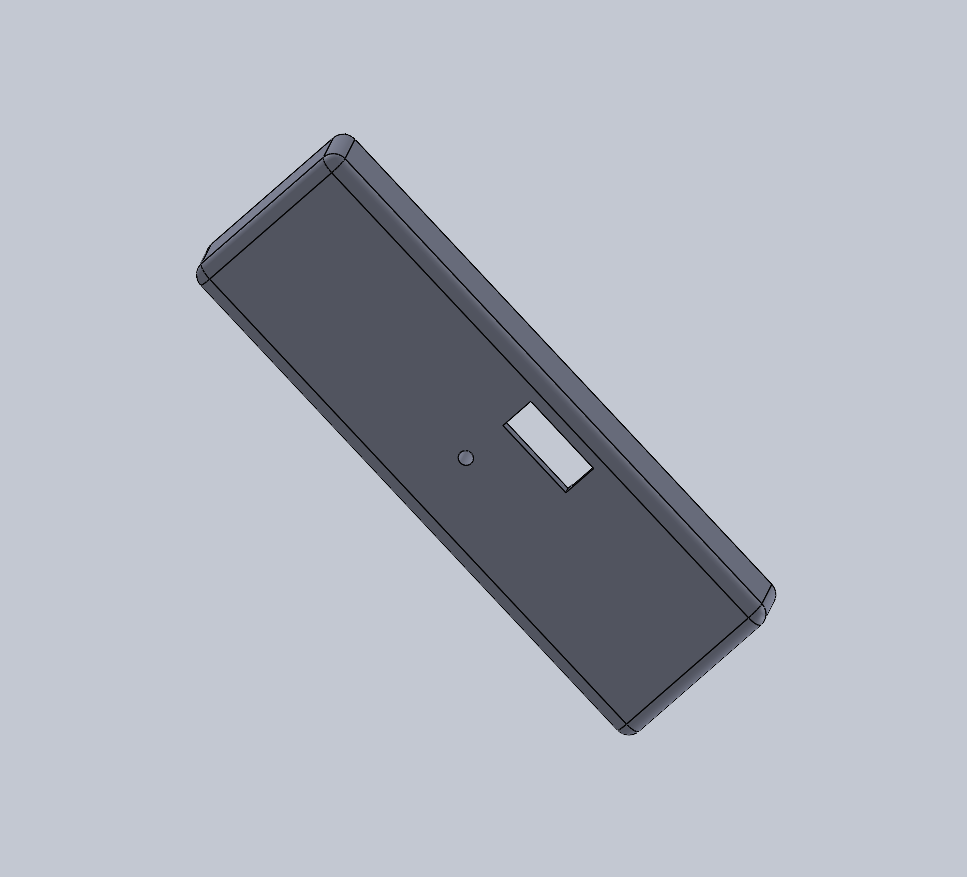

Short CAD and print cycles let small clearances, screw positions, and internal supports be corrected quickly.
Electronics stay original
The repair focused on the housing and mechanical fit, while the client-supplied electronics and control panel were retained.
