Custom replacement · The Dolans

A cleaner gutter funnel, printed in pieces.

A custom replacement for patched, corroded sheet metal. Designed in CAD, printed in sections, then assembled and sealed for the Dolans’ home.

Start a ProjectAll Case Studies

The problem

The existing gutter funnel was made from corroded sheet metal that had been patched together. The Dolans wanted something that looked better.

The replacement needed a shape suited to the installation beneath the eaves and a connection to the downpipe. This was a practical use for a custom CAD design and a printed part made specifically for the space.

A large part, made in sections

The funnel was too large to make as one print. Printing separate sections made it possible to build the full-size part and assemble it afterwards.

The printed sections were glued together and the seams filled with black silicone to prevent leaks.

From CAD to the installed funnel

Drag the slider to compare the CAD front view with the finished installation.

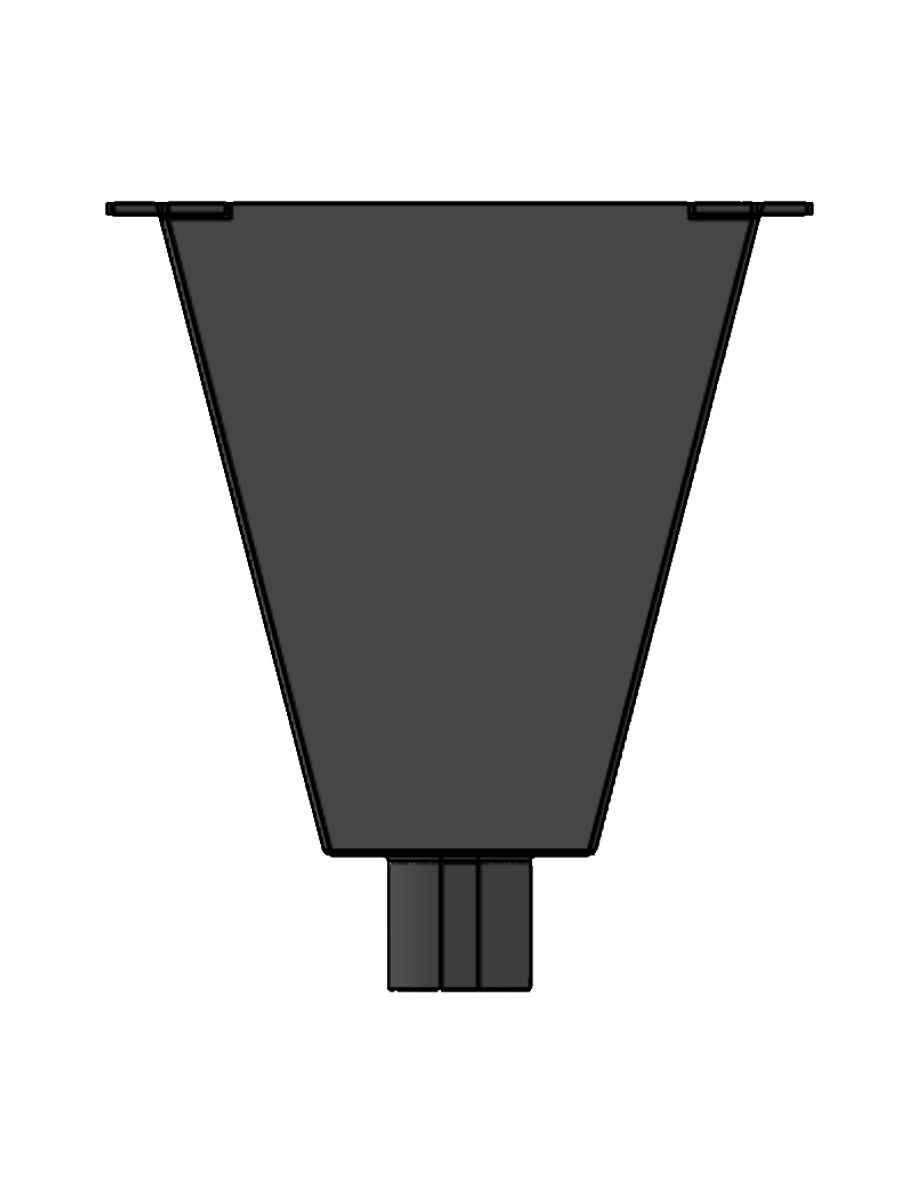

Shaded CAD front view of the custom gutter funnel, showing its tapered body, outlet and mounting tabs, oriented as installed.CAD design

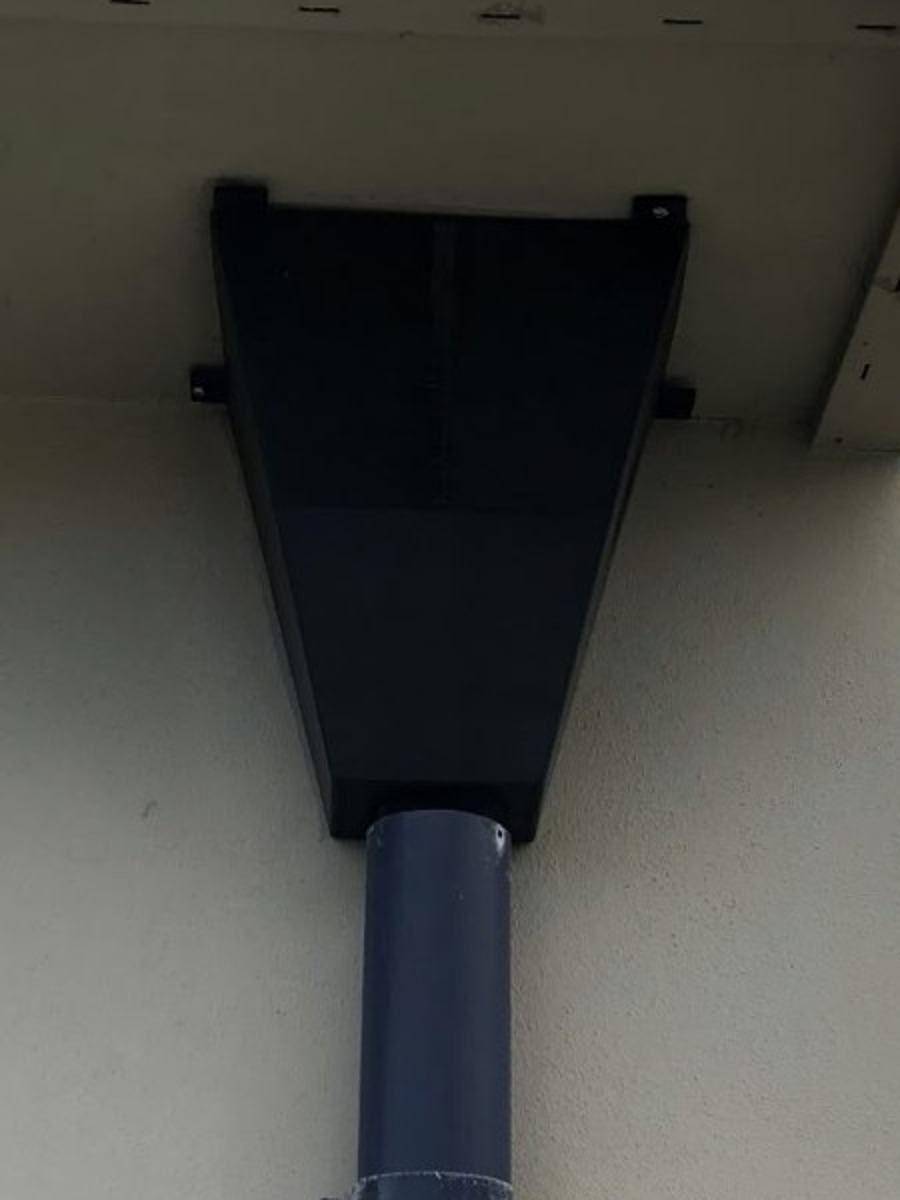

Black printed gutter funnel installed beneath the eaves and connected to the downpipe at the Dolans’ home.Installed
Design to installation: the CAD model and the assembled funnel in place.

Design, printing and assembly in 45 seconds

Three accelerated timelapses show the separate sections taking shape, followed by the assembled part and finished installation.

Printed piece by piece, then glued and sealed with black silicone.

Music: “Funkorama” by Kevin MacLeod (incompetech.com), licensed under Creative Commons Attribution 4.0. Excerpt edited and faded for this video.

From the workshop to the home

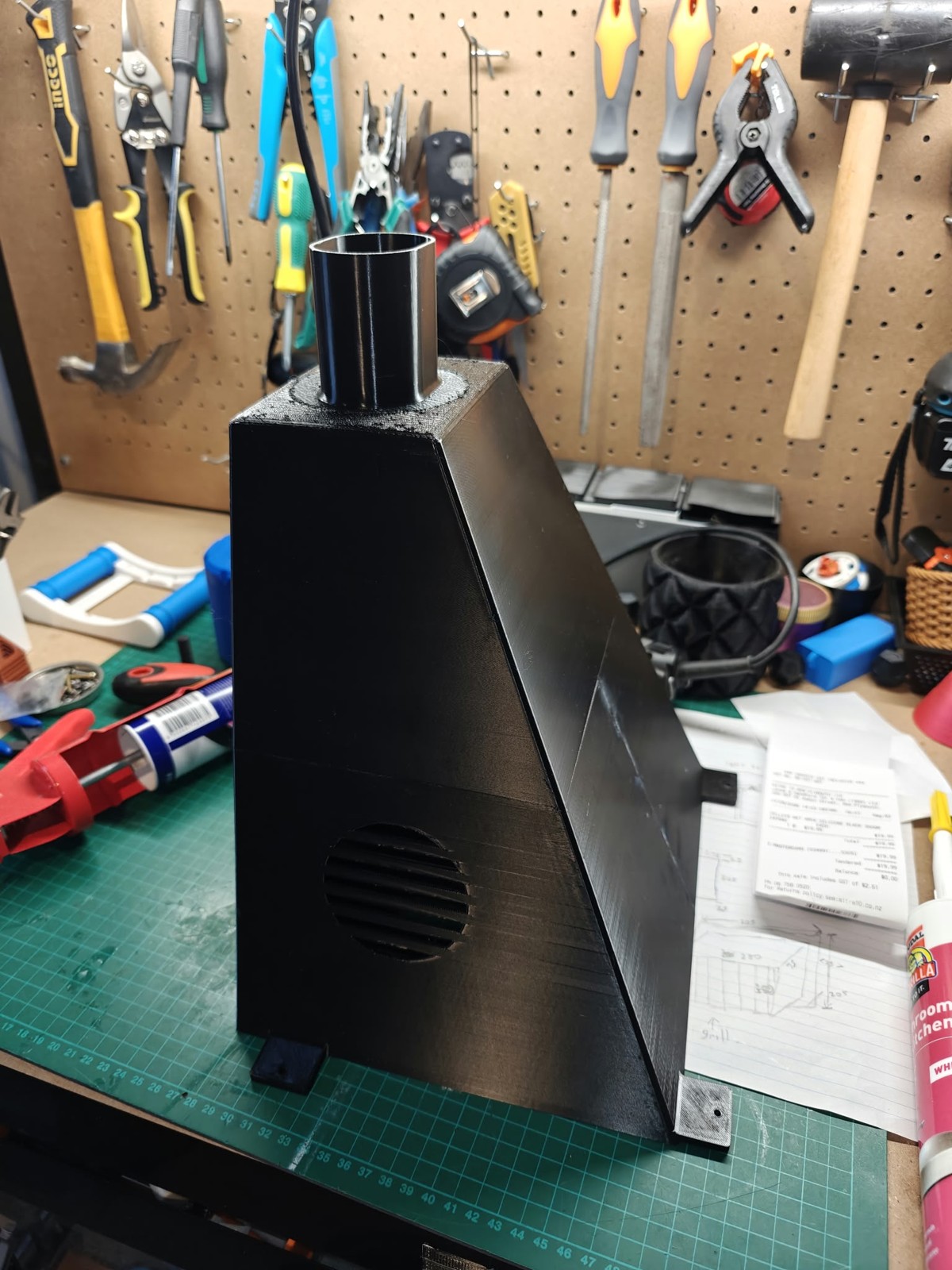

Assembled black gutter funnel on the workshop bench, with joined sections, a round outlet and mounting tabs.
Assembled in the workshopThe separately printed pieces joined into one full-size funnel.

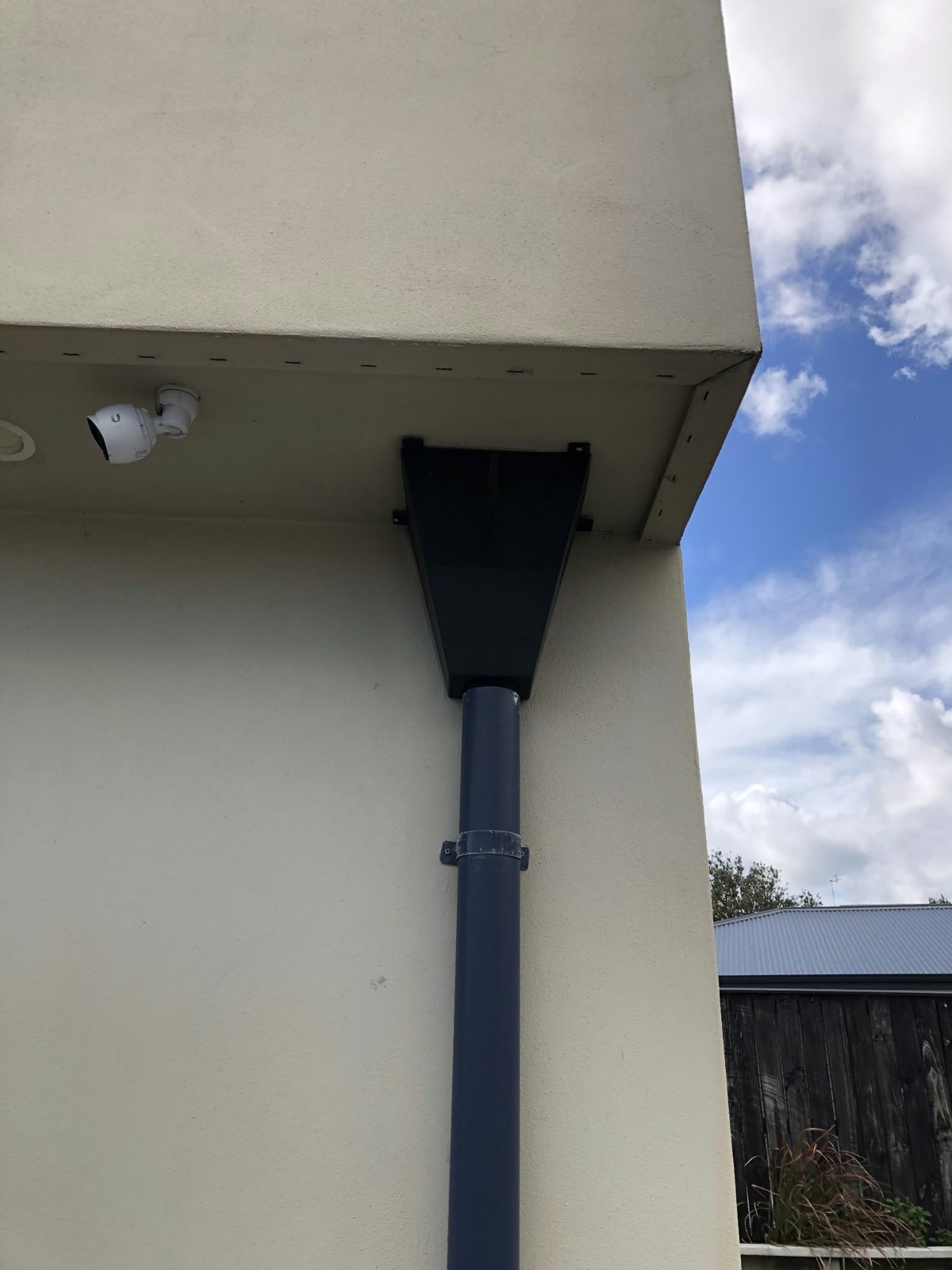

Completed funnel mounted beneath the eaves and joined to the existing downpipe.
The finished installationA cleaner-looking custom replacement for the patched sheet-metal funnel.

The CAD details

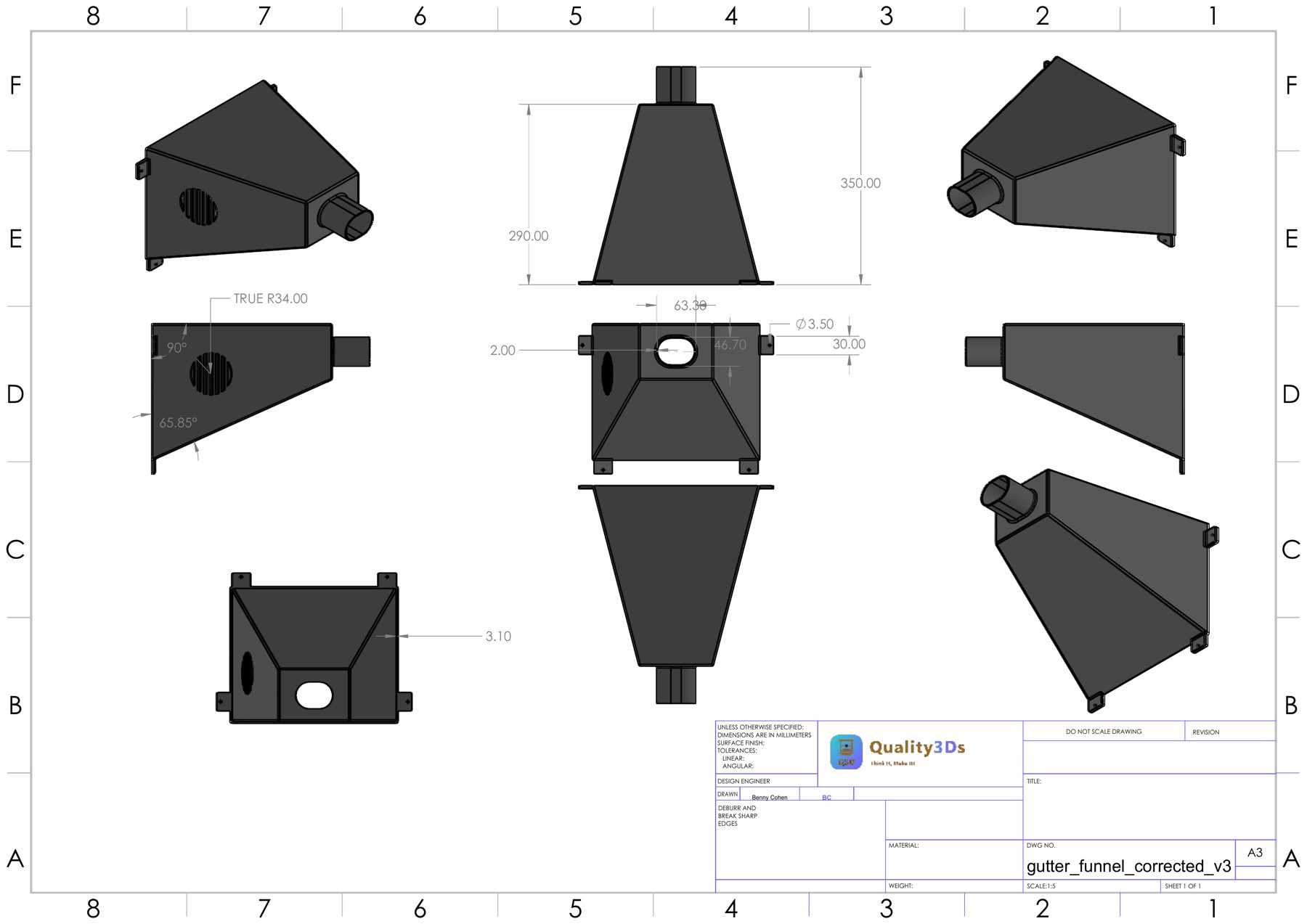

The drawing shows the tapered body, round outlet, grille opening and mounting tabs that bring the design together.

CAD engineering drawing of the gutter funnel, with shaded views and dimensions.
